Kids

The super panoramic padel court for kids

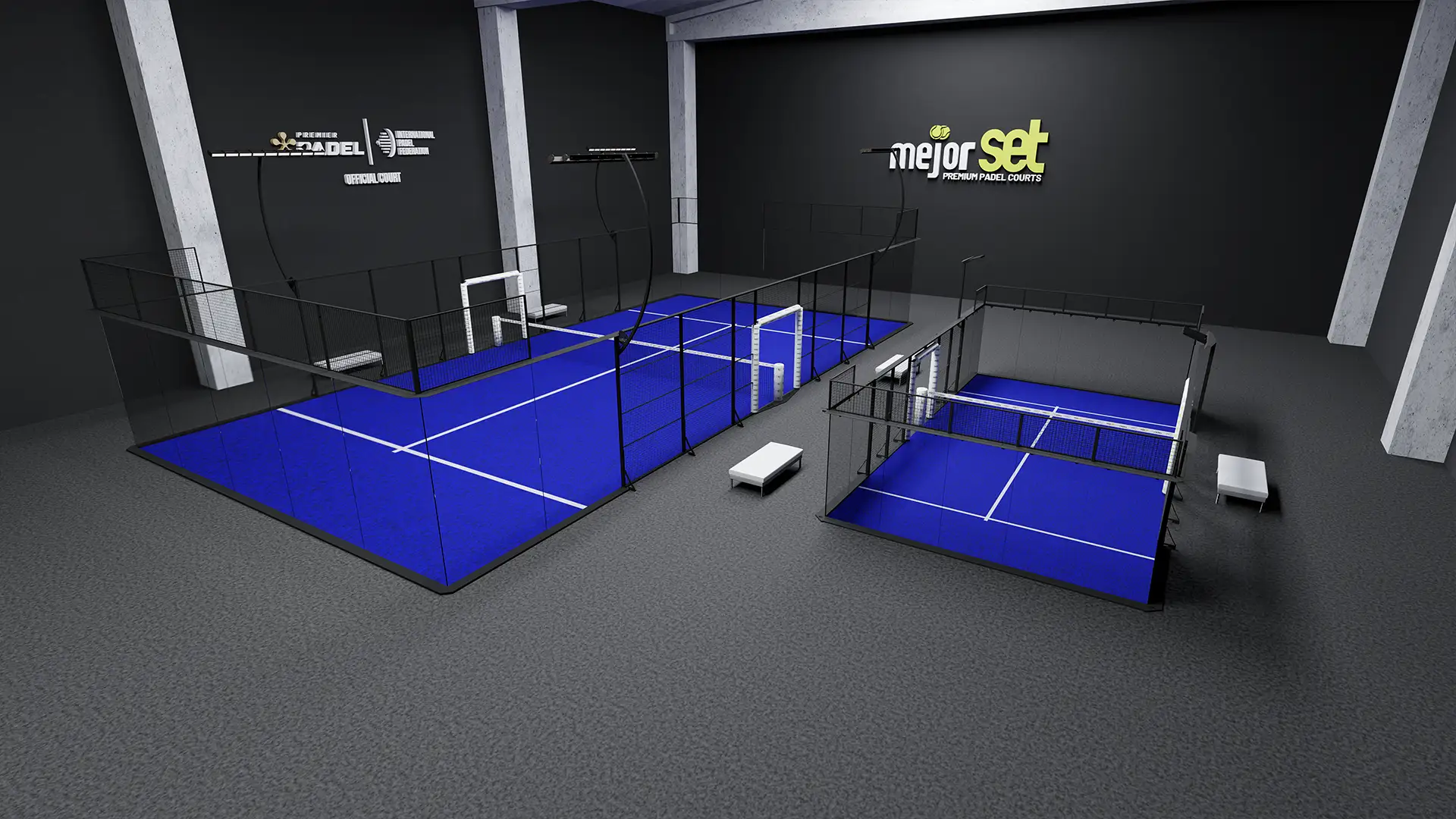

The best padel court for the introduction of kids playing padel. With the same quality features as the adult Full Panoramic, we have created the safest option for them to play padel. The Kids padel court is half the length and width of a standard court but with twice the fun! It is suitable for kids aged between 2 to 6 years old as well as matches between kids and parents.

  • Same as the adult version but for children
  • The best materials
  • 12mm glass
  • Anti-injury folded mesh system
  • Baked-on paint
  • LED lighting 8 x 200W
  • High quality artificial peat monofilament

Structure

The enclosure of the court is formed by self-supporting structure with structural tube, closed and anchored with two lower and upper perimeter rings, made of structural sheet metal in 5mm. Galvanized steel painted or coating the structure with baked epoxy polyester resin. Electro welded galvanized mesh 50x50x4mm with delivery without projections. Frames formed with 2mm thick structural tube according to specifications, 3 horizontal 40x5mm plate crossbars. for anti-buckling, premium finish that offers a perfect vision without any structural element around the perimeter of glass with custom elements on door posts and structural elements.
Color structure to be chosen by the client.

  • Length: 10 m (internal dimensions of the game) 10.40 m (external dimensions of the court).
  • Width: 5 m (interior measurements of the game) 5.40 m (exterior measurements of the court)

Glass

Homologated 12mm tempered glass for the panoramic backgrounds and for the sides. All of them installed on 5mm neoprene to reduce vibrations and breaks. The manufacturing process of all this tempered glass is manufactured using a standardized production process and in compliance with the UNE EN 12150-1 standard.

Advantages of the tempered glass:

  • Ability to withstand tensile stress, with a higher resistance than that of annealed glass.
  • In case of breakage, the tempered glass disintegrates into small fragments that do not cause serious cutting or lacerating injuries, such as those that would be caused by the sharp edges of small pieces of annealed glass.
  • These characteristics make tempered glass a good choice for people's safety, especially since it does not break into sharp or large shards.
  • Tempered glass has four times the mechanical strength of annealed glass.

Colour Personalization

Paint

The metallic elements are covered with a thermosetting powder polyester paint formulated with polyester resins. This finish, in a color desired by the client, provides these elements with good resistance to corrosion and ultraviolet rays, as well as being highly resistant to mechanical impacts .

Once the powder paint is applied electrostatically on the surface of the material, the pieces go to an oven where they are heated to a temperature between 180ºC-200ºC, in which polymerization occurs.

In coastal / maritime areas where salt fog is formed which, driven by the wind, generates conditions of high risk of corrosion. (especially in the first 100m), we apply a set of extra actions that involve protecting the metal structure of the track against corrosion.

The structure can be painted with the RAL that the client decides, optionally the track can be painted in 2 shades, for example the stalk of the spotlights can be in a different color.

COATING
Double coating
In coastal and salty environments, we treat the structure with an additional two-coat primer system of pure epoxy, which is coated with either a powder or liquid finish.
PRIMING
PRE-TREATMENT
FOUNDATION
QUALICOAT seal

Textured Turf

10mm textured turf, artificial turf used in the center court of the main professional tournaments worldwide, stands out for the textured effect of its filaments, providing greater rotational and longitudinal traction capacity. It allows for increased grip, thereby enhancing safety and performance during movements. Ideal for indoor and professional tournaments.

Our entire range of turf ensures maximum performance, safety, comfort, and durability, recommended by the Professional Padel Players Association and the International Padel Federation.

Monofilament Turf

"12mm monofilament artificial straight grass of the latest generation. This type of surface is ideal for outdoor use due to its composition and faster drainage. It is also recommended for outdoor use, especially in high temperatures, as it better withstands heat. Available in the four official colors accepted by the International Padel Federation: blue, green, orange/clay, and purple."

Illumination

2 lamppost on the court if needed.

LED lighting with 8 spotlights of 150w or 200w is specially designed for our padel courts.

According to NIDE standards, the lighting of a paddle court will be uniform and in a way that does not hinder the vision of the players, the referee team, or the spectators.

We comply with the UNE EN 12193 standard "Lighting for sports facilities".

The advantages of LED projectors for Padel courts:

  • Instant on, so you can make the most of the player's time on the court, as opposed to traditional halide spotlights that take time to to reach their maximum luminosity.
  • Low heat emission, highly recommended for indoor paddle courts due to their small size.
  • Compliance with the lighting regulations of the International Padel Federation.
  • Energy saving, our LED projectors save up to 65% of energy compared to traditional halide bulbs.

Contact form

Our Sales Process

We strive to make business easy, dynamic, and extremely understandable, just like in padel.

1
We customize your court or padel club with a custom design.

Configure the ideal court with our 3D configurator or contact us so we can send you the design that best suits your needs.

2
We define the project and send an estimate.

We will arrange a video call to clarify any details or resolve any possible doubts.

3
Start of construction

Once the agreement is signed and the commercial proposal is accepted, we start working to ship and install your courts.

4
Ready to Play

The average court construction and installation time are 33 days (30 days factory and 3 days installation). Transportation depends on location.
