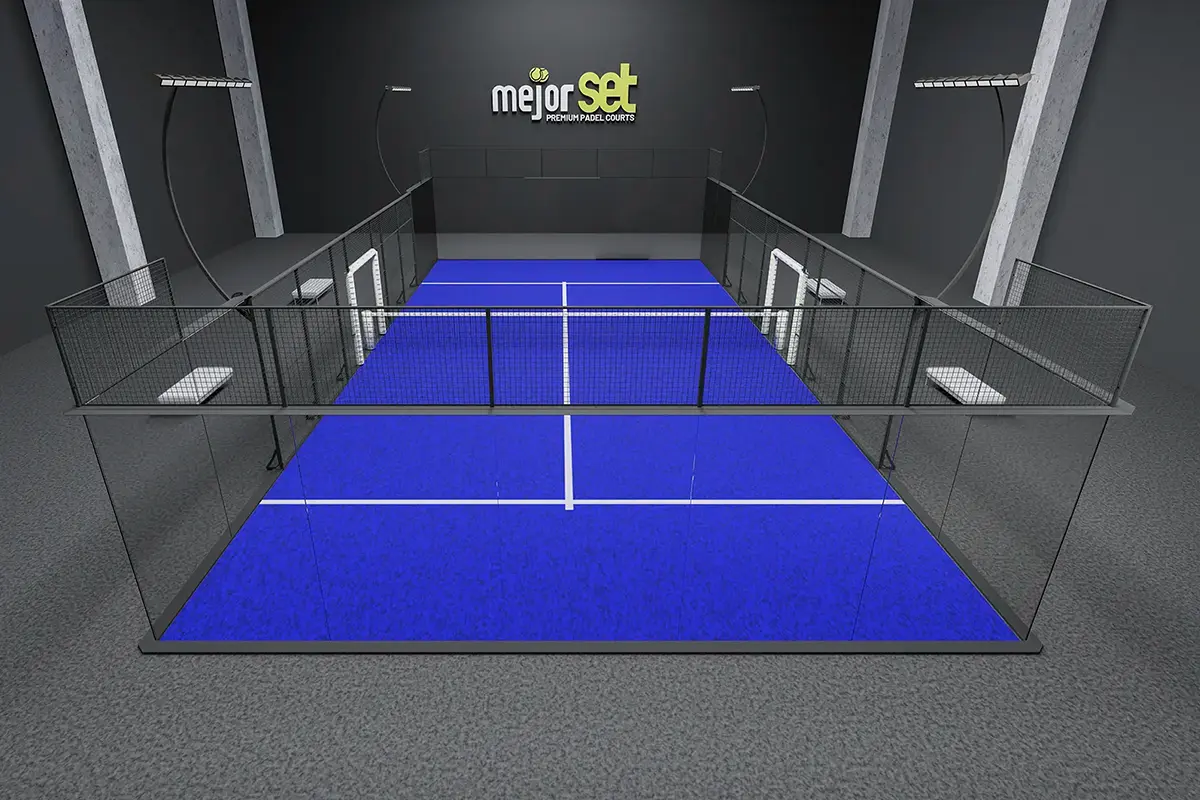

Full Panoramic

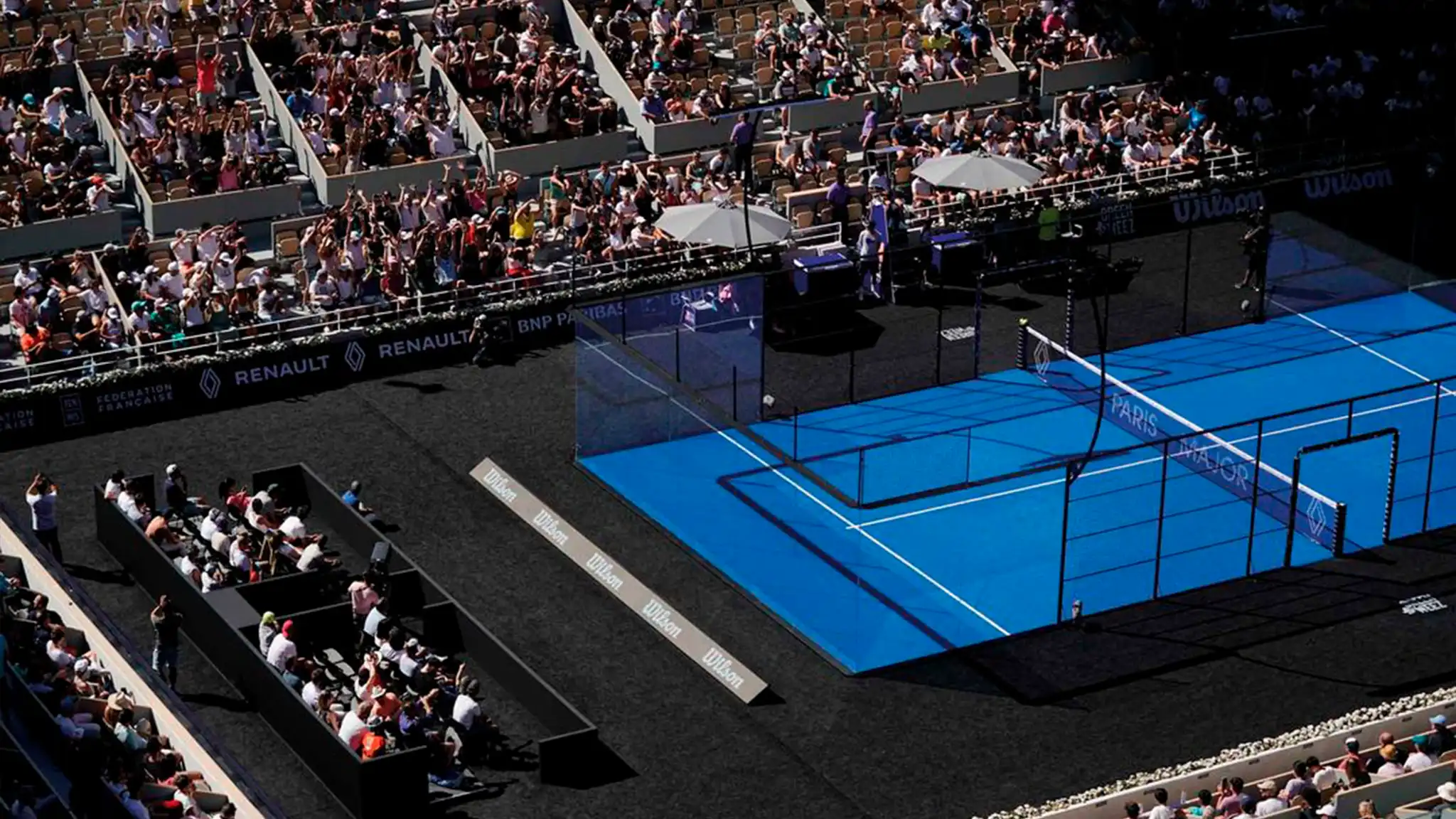

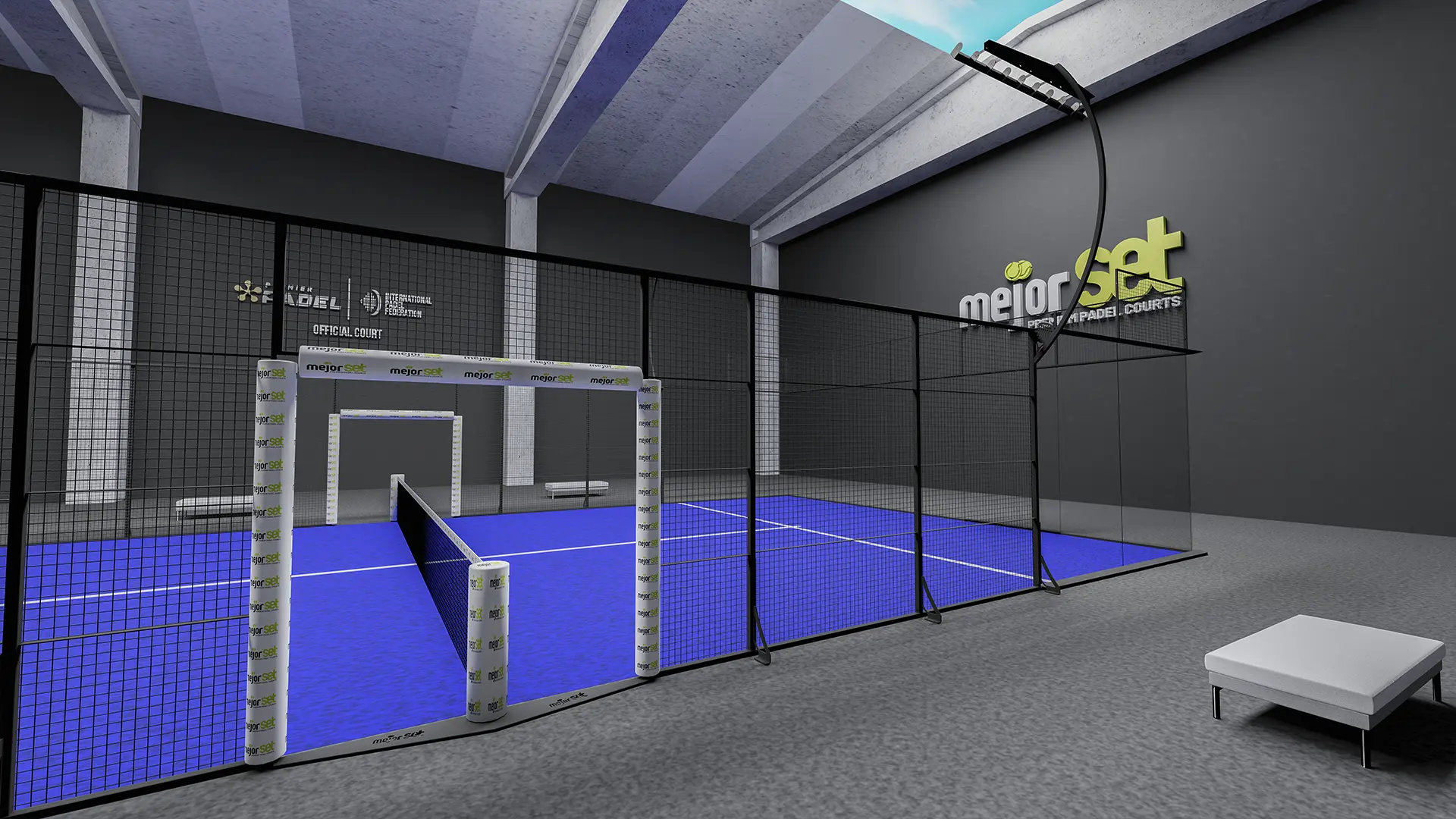

Our star court was originally developed by us and used in all international tournaments. The FULL PANORAMIC court, without corners (pillars), has been awarded as the best padel court in the world, designed for those clubs that want to offer their users a court of the highest performance. Perfect as indoor and outdoor padel court.

  • No structural elements in glazing areas
  • Offers a spectacular indoor and outdoor view for both the player and the spectator
  • Adapted for all environments and locations while allowing a fantastic panoramic view for televised matches

Structure

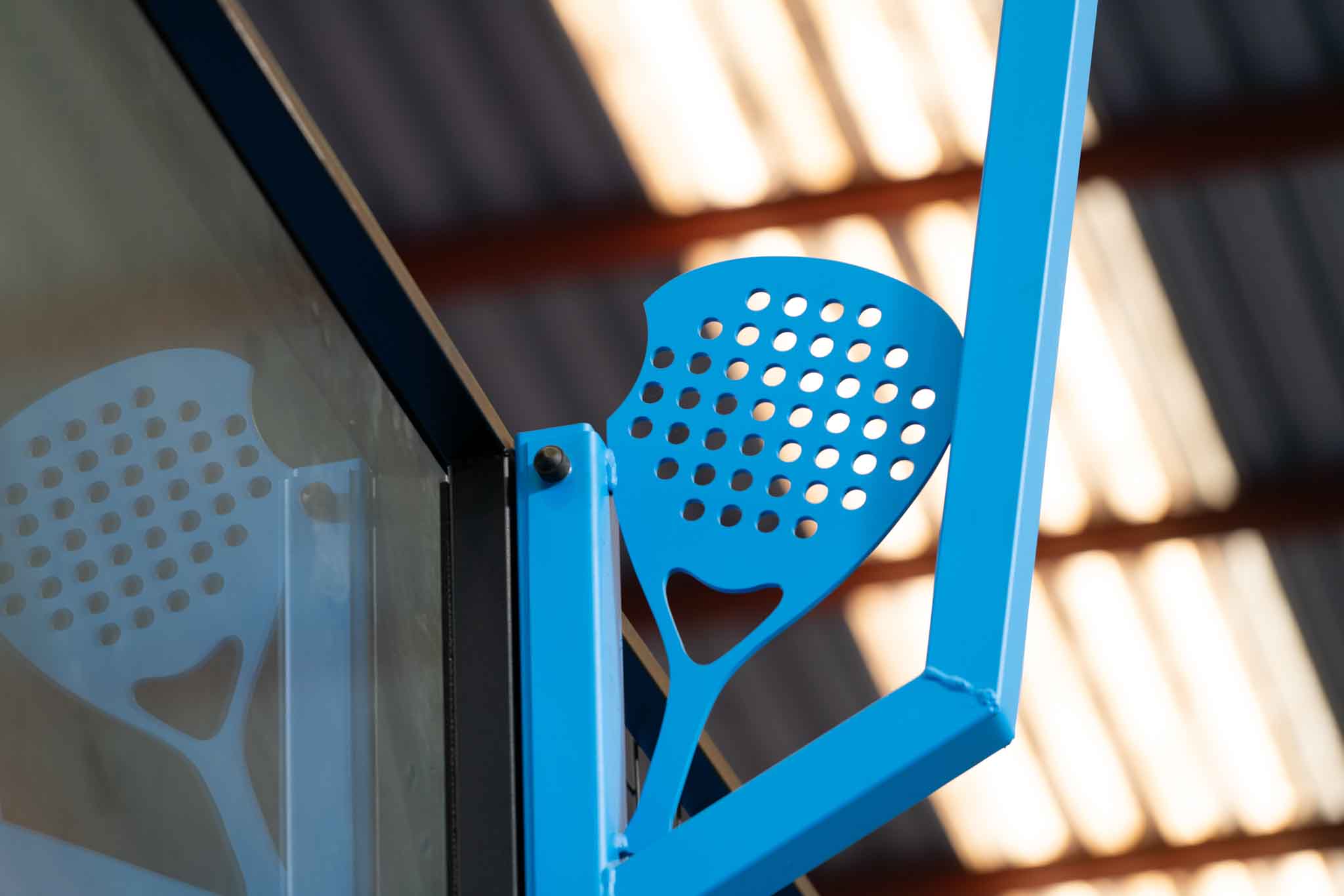

The enclosure of the court is formed by self-supporting structure with structural tube, closed and anchored with two lower and upper perimeter rings, made of structural sheet metal in 5mm.

Galvanized steel painted or coating the structure with baked epoxy polyester resin. Electro welded galvanized mesh 50x50x4mm with delivery without projections.

Frames formed with 2mm thick structural tube according to specifications, 3 horizontal 40x5mm plate crossbars.
For anti-buckling, we work on a premium finish that offers a perfect vision without any structural element around the perimeter of glass with custom elements on door posts and structural elements.


Color structure to be chosen by the client.

  • Length: 20 m (internal dimensions of the game) 20.40 m (external dimensions of the court).
  • Width: 10 m (interior measurements of the game) 10.40 m (exterior measurements of the court)

Glass

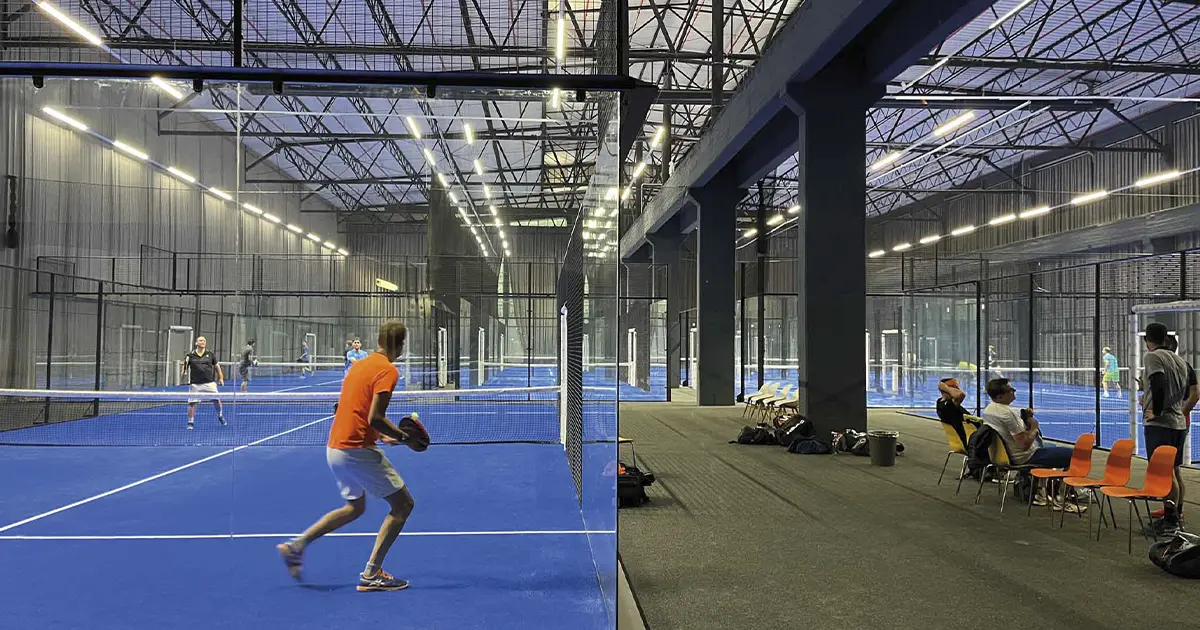

Certified 12mm tempered glass for the panoramic backgrounds and for the sides. In the case of the side windows, this court can mount 2 large 2x3m windows, the same size as the bottoms or the traditional system. All of them installed on 5mm neoprene to reduce vibrations and breaks. The manufacturing process of all this tempered glass is manufactured using a standardized production process and in compliance with the UNE EN 12150-1 standard.

Advantages of the tempered glass:

  • Ability to withstand tensile stress, with a higher resistance than that of annealed glass.
  • In case of breakage, the tempered glass disintegrates into small fragments that do not cause serious cutting or lacerating injuries, such as those that would be caused by the sharp edges of small pieces of annealed glass.
  • These characteristics make tempered glass a good choice for people's safety, especially since it does not break into sharp or large shards.
  • Tempered glass has four times the mechanical strength of annealed glass.

Colour Personalization

Paint

The metallic elements are covered with a thermosetting powder polyester paint formulated with polyester resins. This finish, in a color desired by the client, provides these elements with good resistance to corrosion and ultraviolet rays, as well as being highly resistant to mechanical impacts .

Once the powder paint is applied electrostatically on the surface of the material, the pieces go to an oven where they are heated to a temperature between 180ºC-200ºC, in which polymerization occurs.

In coastal / maritime areas where salt fog is formed which, driven by the wind, generates conditions of high risk of corrosion. (especially in the first 100m), we apply a set of extra actions that involve protecting the metal structure of the track against corrosion.

The structure can be painted with the RAL that the client decides, optionally the track can be painted in 2 shades, for example the stalk of the spotlights can be in a different color.

COATING
Double coating
In coastal and salty environments, we treat the structure with an additional two-coat primer system of pure epoxy, which is coated with either a powder or liquid finish.
PRIMING
PRE-TREATMENT
FOUNDATION
QUALICOAT seal

Turf

MONDO STX

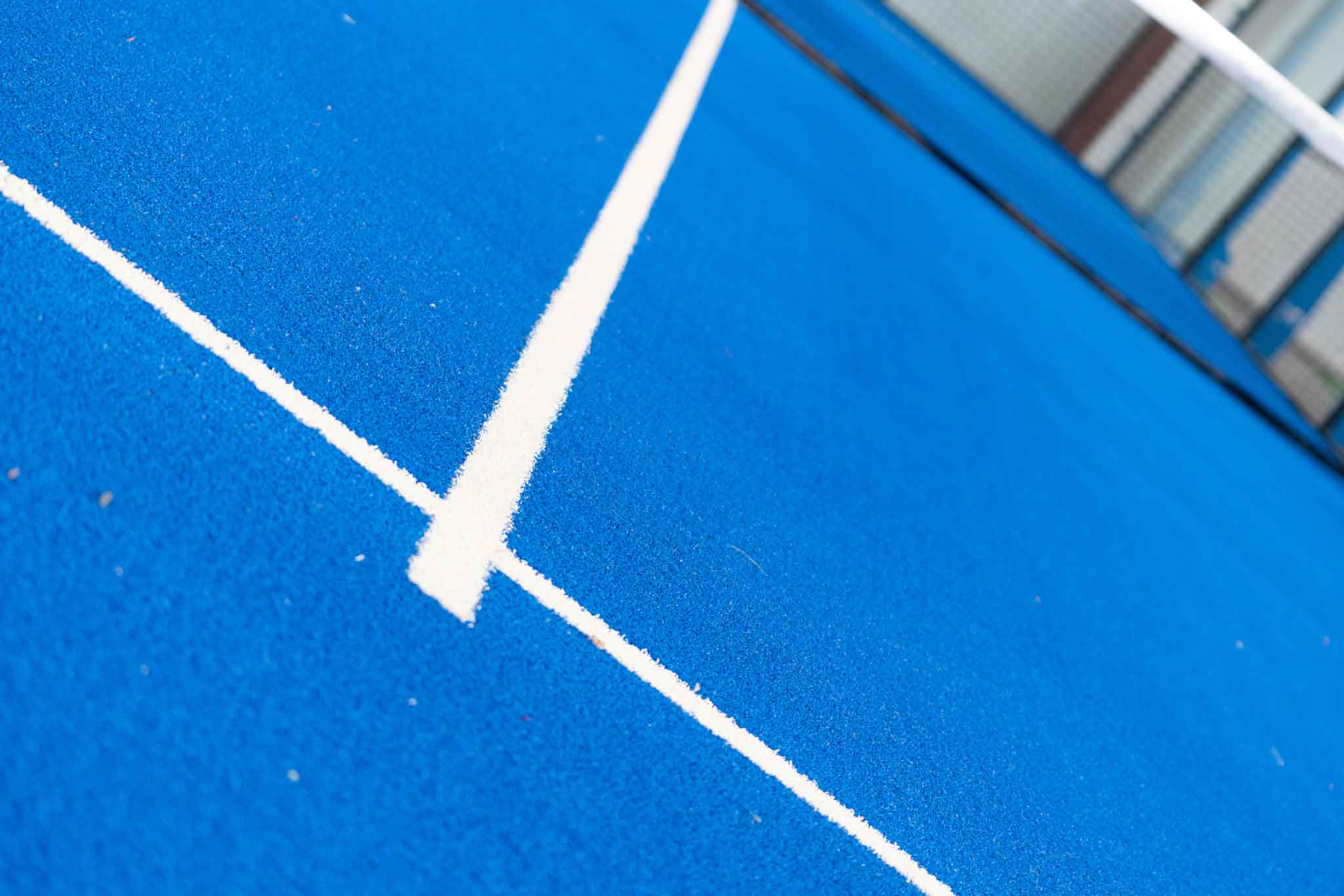

Monofilament artificial grass of the latest generation, a new range of artificial turf for Padel courts that favors a higher speed of play, is safer, more stable, and more resistant.

The 12mm monofilament grass is available in the 4 official colors accepted by the International Padel Federation: blue, green, orange/clay, and purple.
Colour Range:

Turf

MONDO SUPERCOURT XN

We also have the new 10mm textured turf, artificial turf used in the center court of the main professional tournaments in the world, which stands out for the textured effect of its filaments, which provide greater rotational and longitudinal traction capacity. It allows an increase in the grip and therefore improves the safety and performance of the displacements.

All of our range of grass guarantees maximum performance, safety, comfort, and durability and are recommended by the association of professional paddle players and the International Padel Federation.

Colour Range:

Illumination

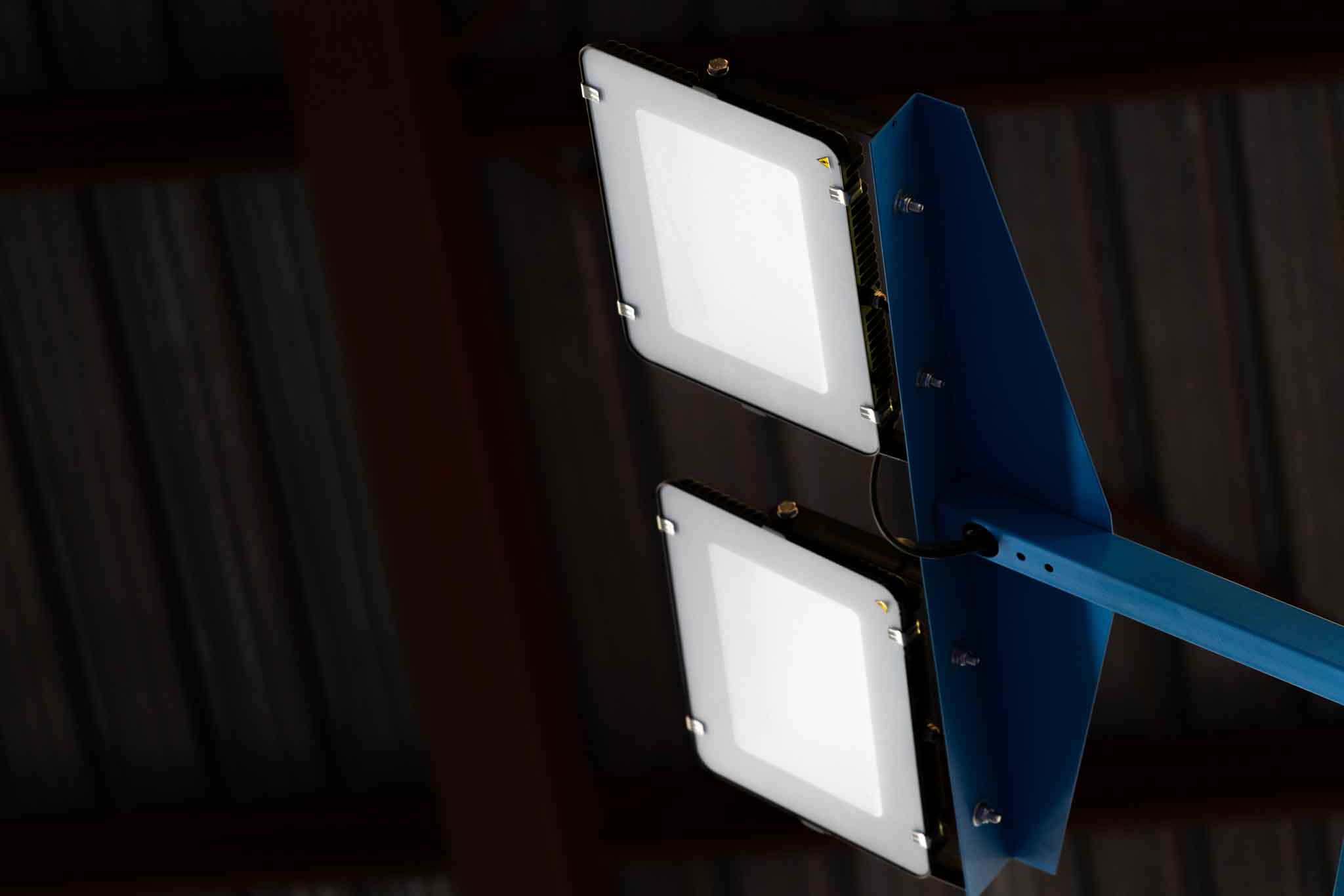

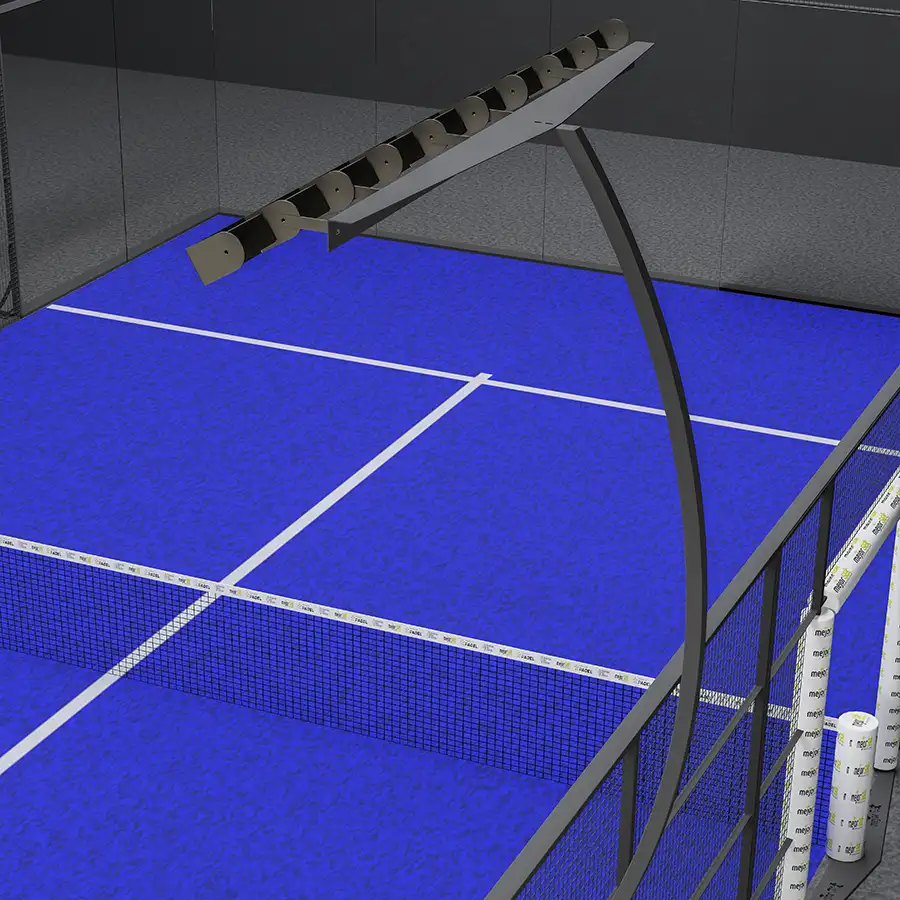

LED lighting with 8 spotlights of 150w or 200w is specially designed for our padel courts.

According to NIDE standards, the lighting of a paddle court will be uniform and in a way that does not hinder the vision of the players, the referee team, or the spectators.

We comply with the UNE EN 12193 standard "Lighting for sports facilities".

The advantages of LED projectors for Padel courts:

  • Instant on, so you can make the most of the player's time on the court, as opposed to traditional halide spotlights that take time to to reach their maximum luminosity.
  • Low heat emission, highly recommended for indoor paddle courts due to their small size.
  • Compliance with the lighting regulations of the International Padel Federation.
  • Energy saving, our LED projectors save up to 65% of energy compared to traditional halide bulbs.

Price and Financing

To know the price of the Full Panoramic model you must request a quote, contact us and we will prepare a customized quote for you.

Our sales process

We strive to make business easy, dynamic, and extremely understandable, just like in padel.

1
We customize your court or padel club with a custom design.

Configure the ideal court with our 3D configurator or contact us so we can send you the design that best suits your needs.

2
We define the project and send an estimate.

We will arrange a video call to clarify any details or resolve any possible doubts.

3
Start of construction

Once the agreement is signed and the commercial proposal is accepted, we start working to ship and install your courts.

4
Ready to Play

The average court construction and installation time are 33 days (30 days factory and 3 days installation). Transportation depends on location.
