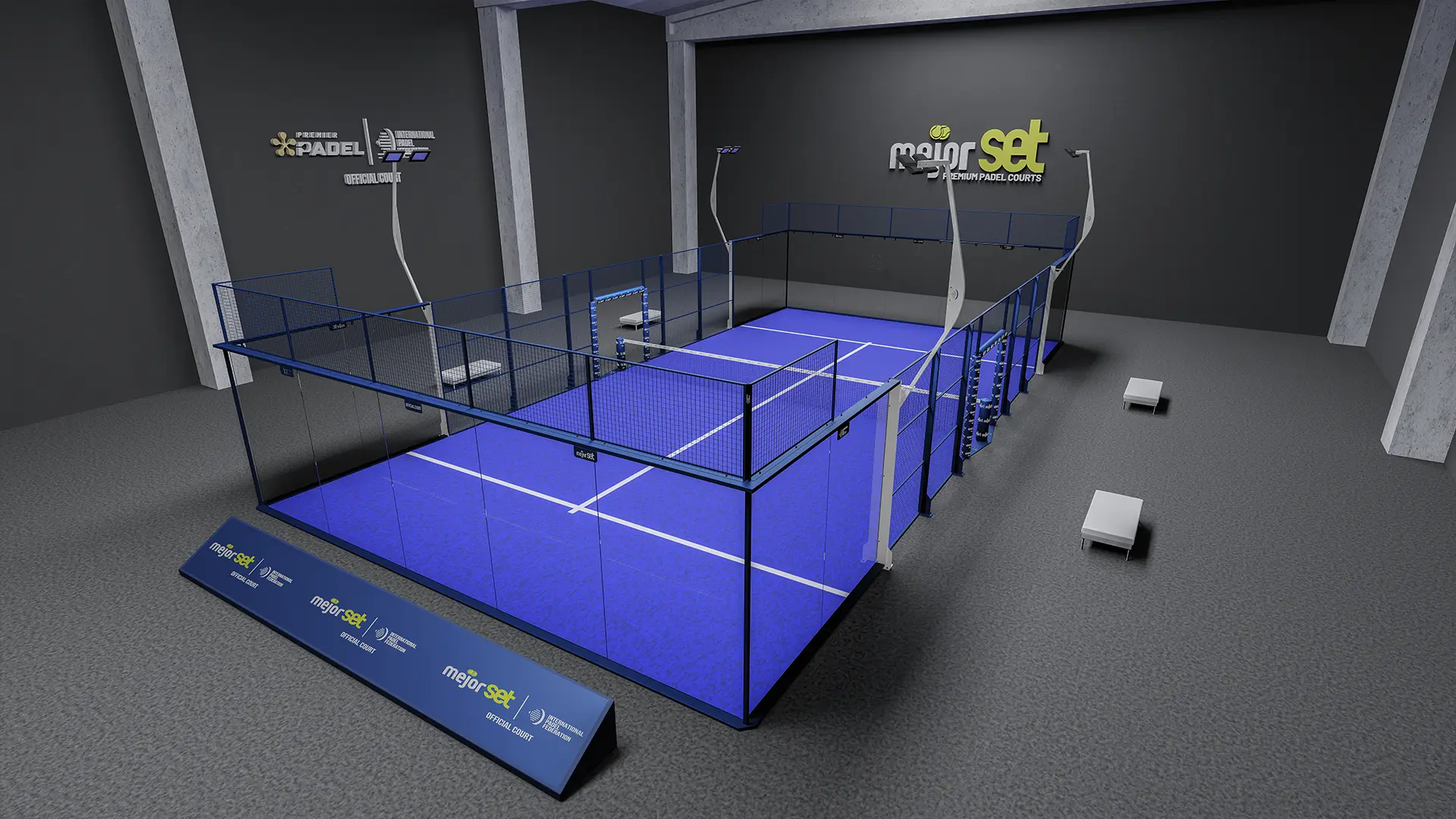

Exclusive official court built and distributed by MejorSet designed in collaboration with the International Padel Federation (FIP), aims to establish the highest quality standards in the game, providing maximum visibility while being a disruptive design.
Padel court 20x10 m. made of galvanised steel structure painted or coated with baked polyester epoxy resin according to the characteristics of the technical specifications, galvanised electro-welded mesh 50x50x4mm with delivery without interior projections.
Frame joints with threaded rod, washers and rounded stainless steel blind nuts. Double entrance door opening of 1.10 cm, including posts and netting, fully finished in accordance with FIP standards for the approval of materials, optional customised corner finish, bottom beams with structural tube 140x60x2 galva.
Sides 80.60.2 in intermediate 3 m high, anchor plates 300x180x10 mm and 200x190x10 mm with 10 mm sheet metal brackets, with m14 screws or higher and metal plugs with a minimum length of 140 mm.
Fixing to the floor by means of dowels or similar, metal structural reinforcement brackets up to 0.5 m high at the base of glass support pillars, horizontal crosspieces at 1 m and 2 m of 30x30x2 mm for anti-pandering, upper sealing of pillars with pvc plugs.
Certified 12 mm tempered glass for the panoramic backdrops and for the sides. In the case of the side glass, this court can be fitted with 2 large panes of 2x3m, the same size as the backdrops, or the traditional system, all of which are installed on 5mm neoprene to reduce vibrations and breakage. All of them installed on 5 mm neoprene to reduce vibrations and breakage.
The manufacturing process of all this tempered glass is manufactured using a standardised production process and in accordance with the UNE EN 12150-1 standard.
In case of breakage, tempered glass disintegrates into small fragments that do not cause serious cutting or lacerating injuries, such as those that would be caused by the sharp edges of small pieces of annealed glass. These characteristics make tempered glass a good choice for personal safety, especially because it does not break into sharp or large fragments. Tempered glass has four times the mechanical strength of annealed glass.
The metallic elements are coated with thermosetting polyester powder paint formulated with polyester resins. This finish, in the colour desired by the client, provides these elements with good resistance to corrosion and ultraviolet rays, as well as being highly resistant to mechanical impact.once the powder paint has been electrostatically applied to the surface of the material, the parts go to an oven where they are heated to a temperature of between 180ºC-200ºC, where polymerisation takes place.in coastal/maritime areas where salt spray is formed and driven by the wind, generating conditions of high risk of corrosion (especially in the first 100m),
We apply a set of extra actions that involve the protection of the metal structure of the court against corrosion.
Personalization:The structure can be painted with the RAL of the client's choice, optionally the court can be painted in 2 tones, for example the spotlight poles can be painted in another colour.
We work with paint with the QUALICOAT seal, this is a seal of quality and that is committed to maintaining and promoting the quality of the coating on aluminium substrates and its alloys for architectural applications.

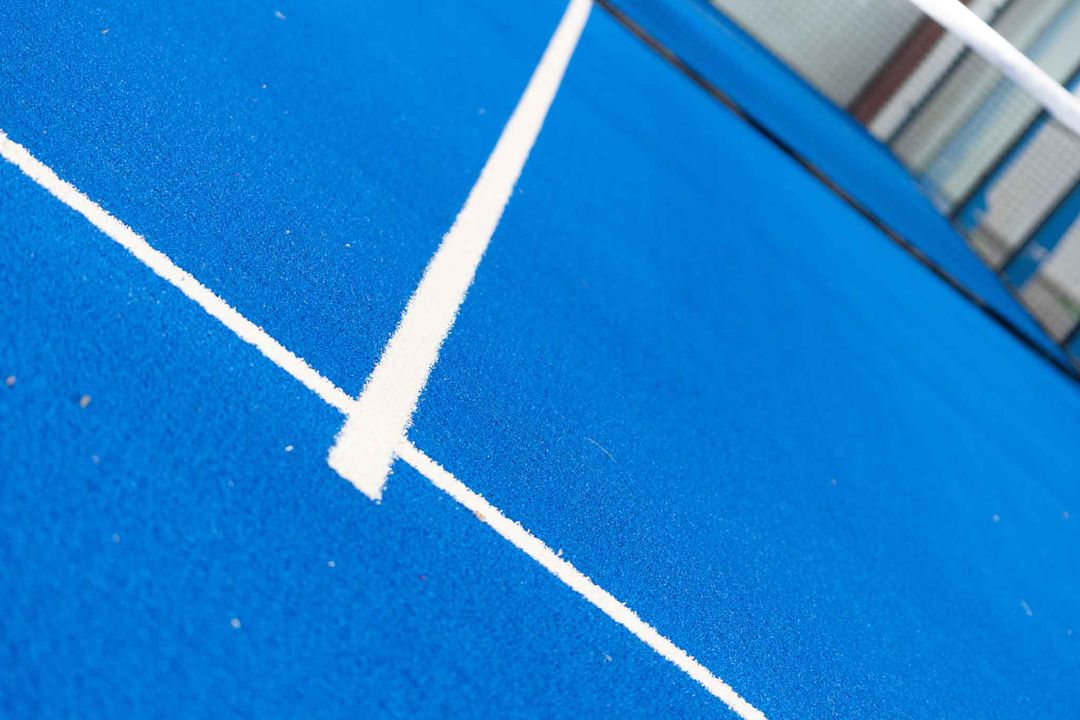

The 12mm monofilament grass is available in the 4 official colours accepted by the International Padel Federation: blue, green, orange/clay and purple.
10mm textured turf is also available, artificial grass used in the centre court of the main professional tournaments in the world, which stands out for the textured effect of its filaments, which provide greater rotational and longitudinal traction capacity. All our range of grass guarantees maximum performance, safety, comfort and durability and are recommended by the association of professional padel players and by the International Padel Federation.
Exclusive lamp post design for the FIP Official Court model, in white.

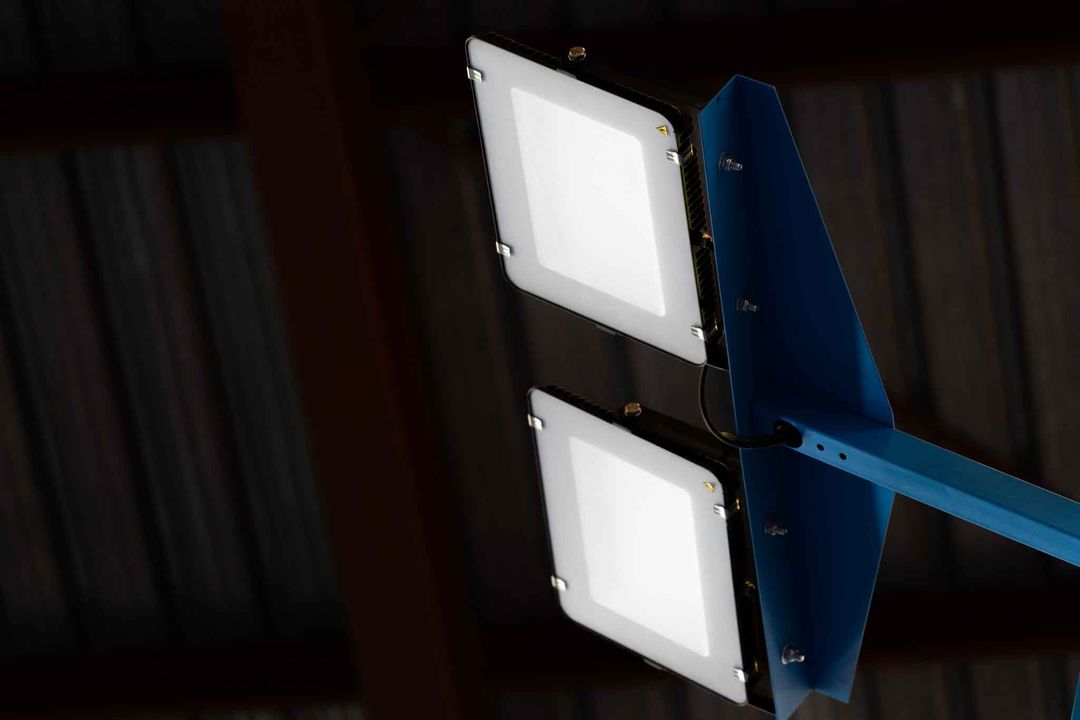

LED lighting with 8 spotlights of 150w or 200w specially designed for our Padel courts.
According to NIDE standards the lighting of a padel court will be uniform and in a way that does not hinder the vision of the players, the referee team or the spectators. We comply with the UNE-EN 12193 standard "Lighting of sports facilities".
The advantages of LED floodlights for padel courts:
To find out the price of our new FIP Official Court model, please request a quote. Contact us and we will prepare a personalised quote for you. You can also try to visualize the design of your court in our configurator and send it directly to us for a quotation.
We strive to make business easy, dynamic, and extremely understandable, just like in padel.
Configure the ideal court with our 3D configurator or contact us so we can send you the design that best suits your needs.
We will arrange a video call to clarify any details or resolve any possible doubts.
Once the agreement is signed and the commercial proposal is accepted, we start working to ship and install your courts.
The average court construction and installation time are 33 days (30 days factory and 3 days installation). Transportation depends on location.
